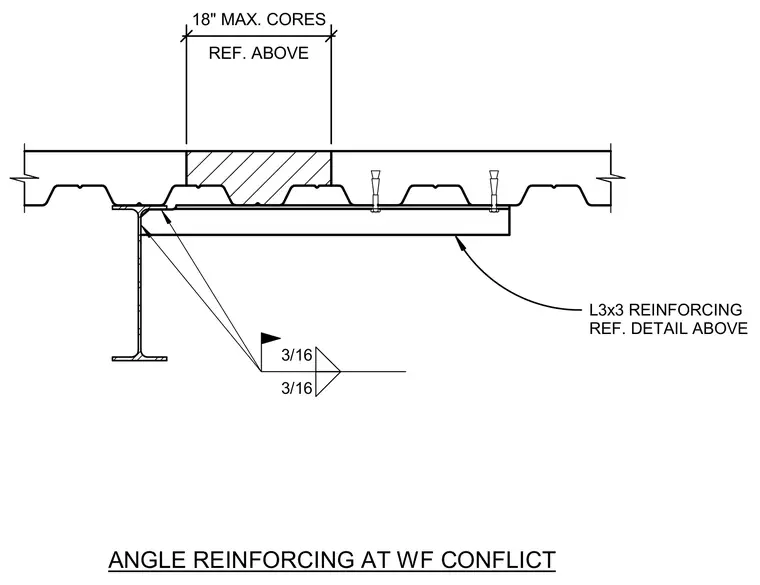

An L3x3 angle reinforces a wide flange steel beam at a structural conflict point. The assembly includes metal deck and concrete fill with core dimensions spanning a maximum of eighteen inches. Three-sixteenths inch welds secure the reinforcing angle to the steel beam. Self-tapping screws or fasteners attach the underside components as indicated.
L3x3 REINFORCING REF. DETAIL ABOVE ANGLE REINFORCING AT WF CONFLICT REF. ABOVE 18" MAX. CORES 3/16 3/16
