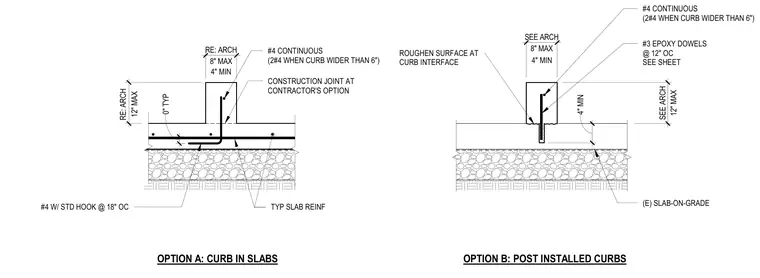

Concrete curb details on slab-on-grade illustrate two construction options for anchoring the curb to the concrete slab. Option A details a monolithically poured or cast-in-place curb with continuous number four rebar and hooked dowels extending into the typical slab reinforcement. Option B details a post-installed curb over a roughened surface interface, secured with number three epoxy dowels at twelve inches on center into the existing slab-on-grade. Both options detail continuous longitudinal reinforcing bars with increased bar counts for curbs wider than six inches, set below variable heights sized per architectural requirements.
#4 CONTINUOUS (2#4 WHEN CURB WIDER THAN 6") #4 W/ STD HOOK @ 18" OC TYP SLAB REINF . 12" MAX RE: ARCH 8" MAX RE: ARCH CONSTRUCTION JOINT AT CONTRACTOR'S OPTION 0" TYP 4" MIN OPTION A: CURB IN SLABS ROUGHEN SURFACE AT CURB INTERFACE #3 EPOXY DOWELS @ 12" OC SEE SHEET (E) SLAB-ON-GRADE 8" MAX SEE ARCH 12" MAX SEE ARCH #4 CONTINUOUS (2#4 WHEN CURB WIDER THAN 6") 4" MIN 4" MIN OPTION B: POST INSTALLED CURBS
