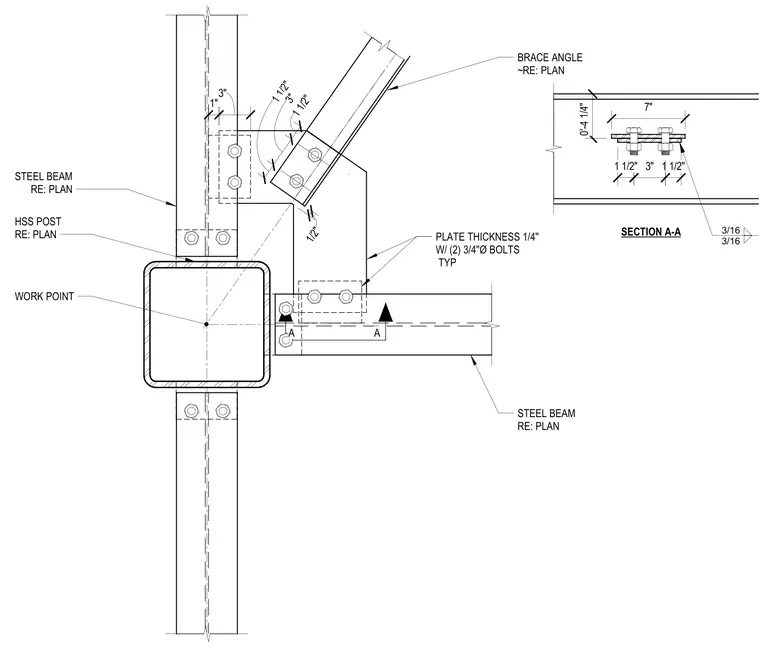

Steel beams and a diagonal brace angle connect to a central hollow structural section post at a common work point. A one-quarter inch thick gusset plate secures the beams and brace to the hollow structural section post. Each connection utilizes two three-quarter inch diameter bolts. Section A-A details the bolt spacing and the three-sixteenth inch fillet welds securing the connection components. Steel beam and brace angle sizes are to be verified per the structural plans.
Text on the drawing
STEEL BEAM RE: PLAN HSS POST RE: PLAN BRACE ANGLE ~RE: PLAN WORK POINT A A STEEL BEAM RE: PLAN PLATE THICKNESS 1/4'' W/ (2) 3/4''Ø BOLTS TYP 1/2" 1 1/2" 3" 1 1/2" 0'-4 1/4" SECTION A-A 7" 3" 1 1/2" 1 1/2" 3/16 3/16 3" 1"
