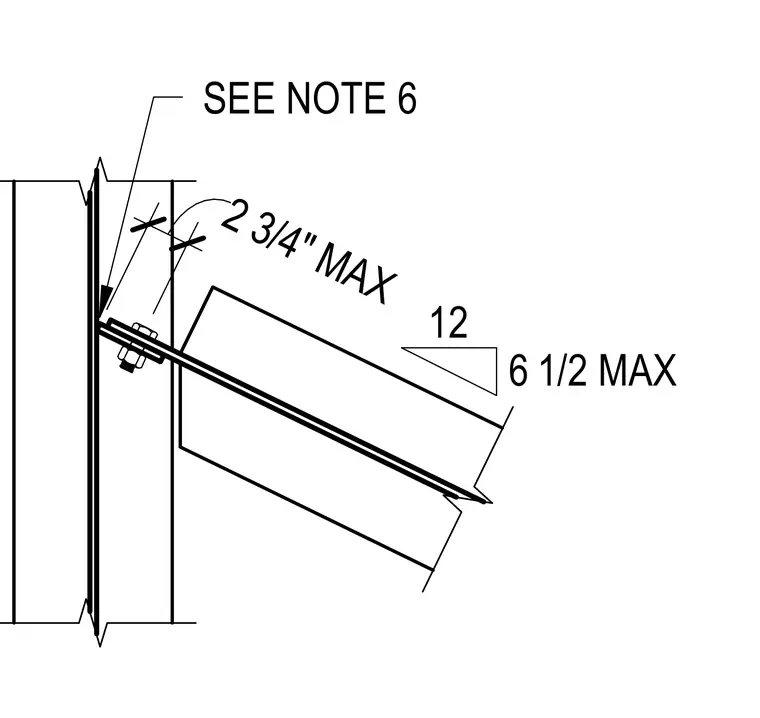

A sloped structural member attaches to a vertical support using a gusset plate and bolt assembly. A maximum clearance of 2 3/4 inches is maintained at the connection interface. The sloped member features a 12 to 6 1/2 maximum pitch configuration. Placement and installation follow general structural note 6.
