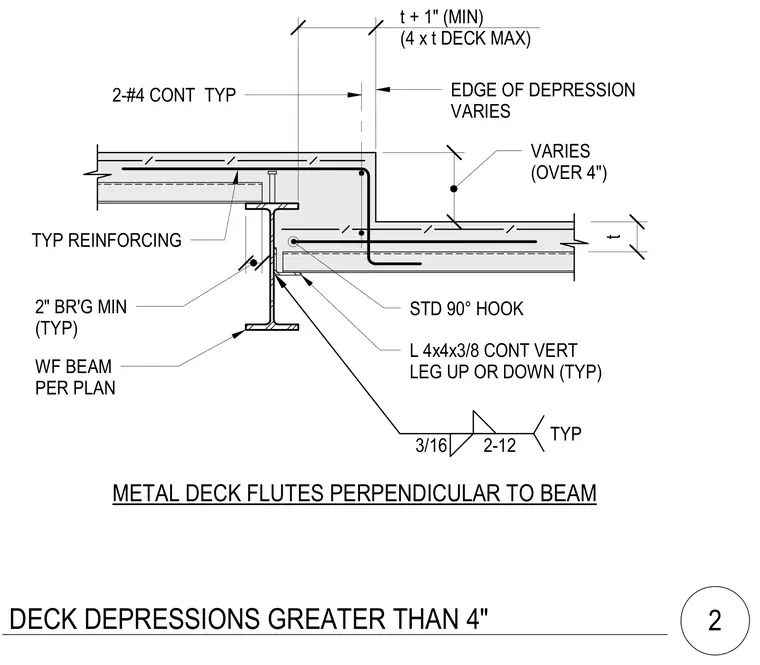

This structural detail shows a concrete slab depression greater than four inches supported by a wide flange beam where the metal deck flutes run perpendicular to the beam. Two continuous number four reinforcing bars run parallel to the depression edge. A continuous four-by-four-by-three-eighths-inch angle with standard ninety-degree hooks is positioned vertically at the drop. A three-sixteenth-inch fillet weld at twelve-inch spacing is applied typically along the connection. The bearing width on the steel beam provides a minimum of two inches.
METAL DECK FLUTES PERPENDICULAR TO BEAM 2-#4 CONT TYP TYP REINFORCING L 4x4x3/8 CONT VERT LEG UP OR DOWN (TYP) WF BEAM PER PLAN EDGE OF DEPRESSION VARIES STD 90° HOOK 3/16 2-12 TYP 2" BR'G MIN (TYP) t VARIES (OVER 4") t + 1" (MIN) (4 x t DECK MAX) DECK DEPRESSIONS GREATER THAN 4" 2
