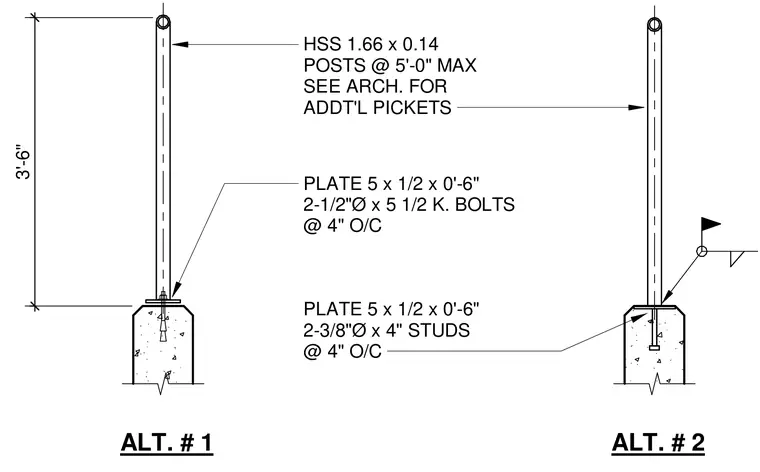

Hollow structural section posts measuring 1.66 inches by 0.14 inches extend to a height of 3 feet 6 inches and are spaced at a maximum of 5 feet on center, referencing architectural drawings for additional pickets. Alternative 1 secures the post to a 5-inch by 1/2-inch by 6-inch steel base plate anchored with two 1/2-inch diameter by 5 1/2-inch wedge or concrete anchor bolts spaced at 4 inches on center. Alternative 2 connects the post to an identical base plate embedded with two 3/8-inch diameter by 4-inch welded studs spaced at 4 inches on center.
PLATE 5 x 1/2 x 0'-6" 2-1/2"Ø x 5 1/2 K. BOLTS @ 4" O/C HSS 1.66 x 0.14 POSTS @ 5'-0" MAX SEE ARCH. FOR ADDT'L PICKETS PLATE 5 x 1/2 x 0'-6" 2-3/8"Ø x 4" STUDS @ 4" O/C ALT. # 1 ALT. # 2 3'-6"
