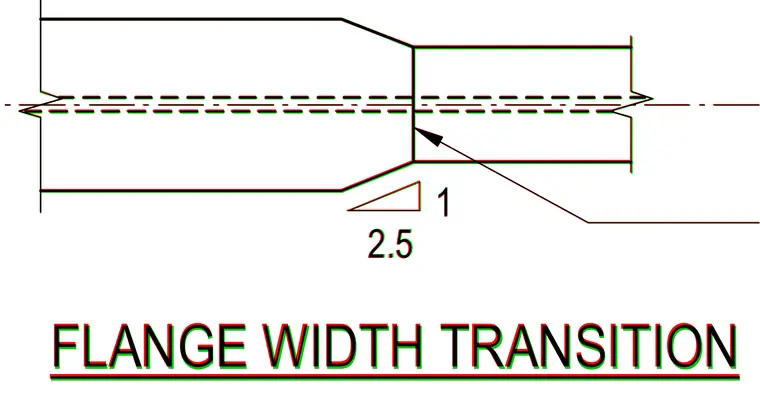

A structural steel member tapers in flange width at a slope of 2.5 horizontal to 1 vertical to connect a wider section to a narrower section. The transition maintains alignment along the centerline and connects with a full penetration or butt weld at the step. The profile features sloped cuts on the flange edges to distribute stress concentrations evenly across the varying width profile.
