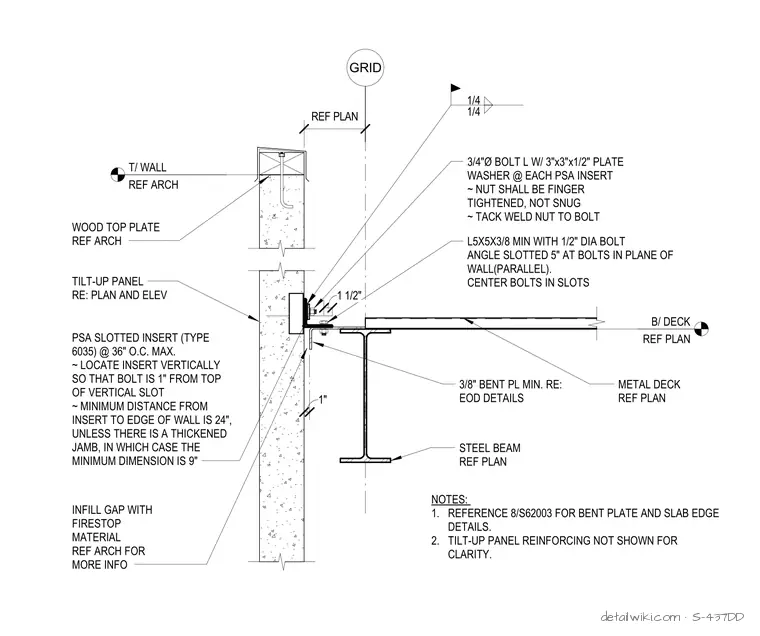

A steel beam and metal roof deck connect to a concrete tilt-up wall panel using a minimum 5-inch by 5-inch by 3/8-inch steel angle. This angle secures to the wall via PSA slotted inserts (Type 6035) spaced at a maximum of 36 inches on center, utilizing 3/4-inch diameter bolts with 3-inch by 3-inch by 1/2-inch plate washers. The bolts center within 5-inch slots in the angle to allow for movement parallel to the wall, with nuts finger-tightened and tack-welded to the bolts to maintain the connection. A 3/8-inch bent plate sits at the interface, and firestop material fills the gap between the deck and the wall. The vertical position of the insert places the bolt 1 inch from the top of the vertical slot, maintaining a minimum edge distance of 24 inches from the wall edge, or 9 inches at thickened jambs.
Text on the drawing
GRID T/ WALL REF ARCH METAL DECK REF PLAN B/ DECK REF PLAN REF PLAN 1" TILT-UP PANEL RE: PLAN AND ELEV INFILL GAP WITH FIRESTOP MATERIAL REF ARCH FOR MORE INFO STEEL BEAM REF PLAN WOOD TOP PLATE REF ARCH 3/8" BENT PL MIN. RE: EOD DETAILS NOTES: 1. REFERENCE 8/S62003 FOR BENT PLATE AND SLAB EDGE DETAILS. 2. TILT-UP PANEL REINFORCING NOT SHOWN FOR CLARITY. L5X5X3/8 MIN WITH 1/2" DIA BOLT ANGLE SLOTTED 5" AT BOLTS IN PLANE OF WALL(PARALLEL). CENTER BOLTS IN SLOTS 1 1/2" PSA SLOTTED INSERT (TYPE 6035) @ 36" O.C. MAX. ~ LOCATE INSERT VERTICALLY SO THAT BOLT IS 1" FROM TOP OF VERTICAL SLOT ~ MINIMUM DISTANCE FROM INSERT TO EDGE OF WALL IS 24", UNLESS THERE IS A THICKENED JAMB, IN WHICH CASE THE MINIMUM DIMENSION IS 9" 3/4"Ø BOLT L W/ 3"x3"x1/2" PLATE WASHER @ EACH PSA INSERT ~ NUT SHALL BE FINGER TIGHTENED, NOT SNUG ~ TACK WELD NUT TO BOLT 1/4 1/4
