Structural · S-437AY

Concrete Pile Cap Foundation Section with Steel Column Base

Materials

Concrete Steel

Elements

Columns Beams Floors / Slabs Foundations / Footings Anchors / Embeds Reinforcing

Connections

Base Plate / Anchorage Bolted Connection Rebar Splice / Development

About this detail

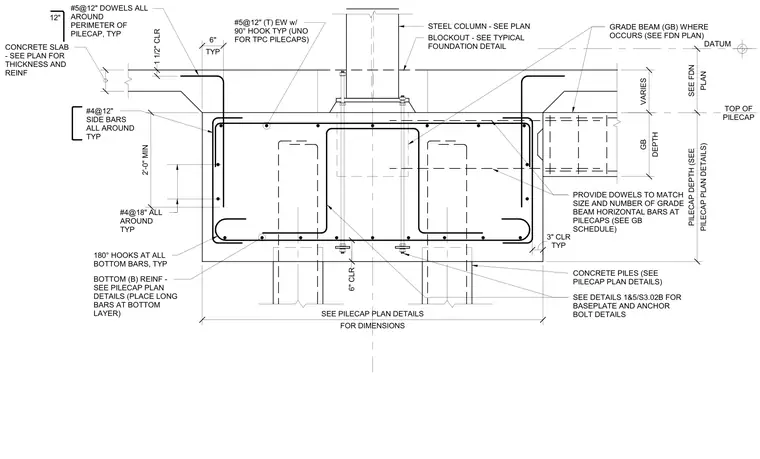

A concrete pile cap supports a steel column and integrates with concrete piles and a grade beam. The pile cap features a bottom layer of longitudinal reinforcing bars with one hundred eighty-degree hooks, enclosed by number four side bars spaced at twelve inches on center all around, and number five top bars each way with ninety-degree hooks. Number five dowels at twelve inches on center ring the perimeter, and matching dowels tie into the adjacent grade beam per the schedule. Concrete piles bear beneath the cap with a specified clearance, while anchor bolts and base plates secure the steel column centered over the assembly. A concrete slab ties into the upper portion, maintaining standard clearances throughout.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
