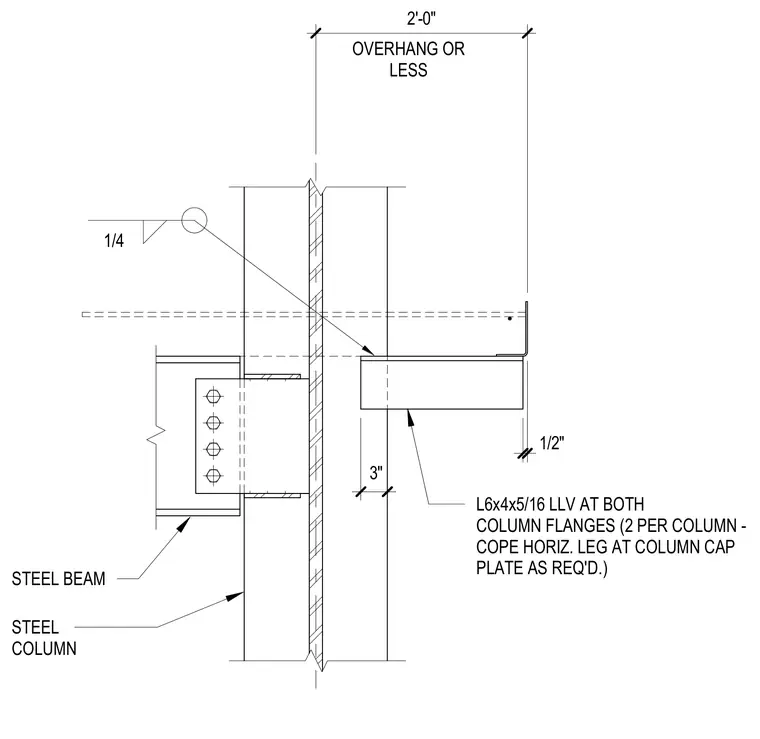

An L6x4x5/16 angle bracket is positioned at both column flanges with two angles per column, utilizing a 1/4-inch fillet weld and a coped horizontal leg at the column cap plate as required. The steel beam connects to the steel column through a bolted shear tab assembly. The overhang extends up to two feet with specified clearances including a 3-inch dimension and a 1/2-inch offset at the edge. The horizontal leg of the angle is positioned three inches from the column face.
1/4 2'-0" OVERHANG OR LESS 1/2" 3" L6x4x5/16 LLV AT BOTH COLUMN FLANGES (2 PER COLUMN - COPE HORIZ. LEG AT COLUMN CAP PLATE AS REQ'D.) STEEL BEAM STEEL COLUMN
