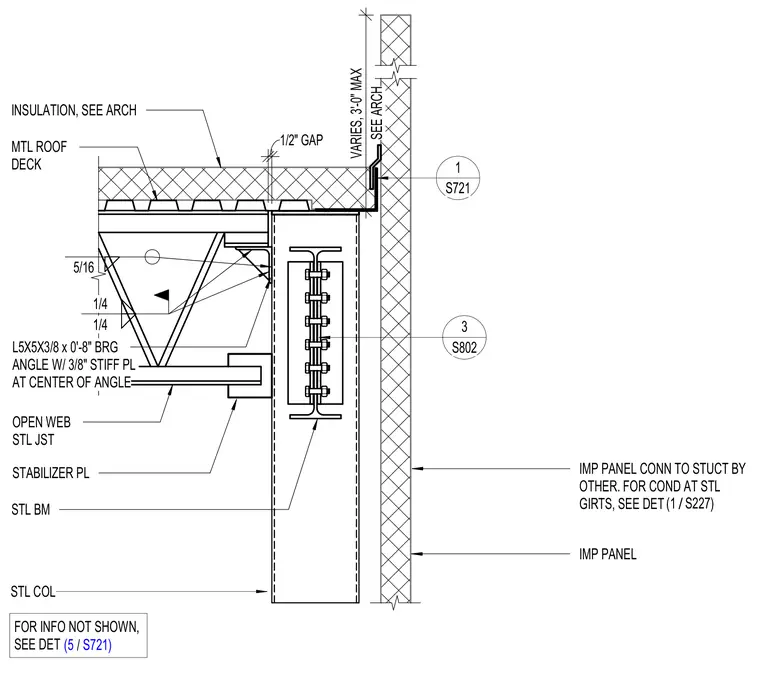

An open web steel joist bears on a structural steel beam and column assembly, maintaining a half-inch gap to the column flange. A bearing angle measuring five by five by three-eighths inches by zero feet eight inches long features a three-eighths-inch stiffener plate welded at its center with quarter-inch fillet welds. A stabilizer plate extends from the steel beam to the bottom chord of the joist. A metal roof deck rests across the top chord of the joist beneath roof insulation. Insulated metal panels span vertically past the assembly with connections to the structure detailed elsewhere.
STL COL / FOR INFO NOT SHOWN, SEE DET (5 S721) INSULATION, SEE ARCH 1 S721 SEE ARCH VARIES, 3'-0" MAX OPEN WEB STL JST IMP PANEL IMP PANEL CONN TO STUCT BY OTHER. FOR COND AT STL GIRTS, SEE DET / (1 S227) STABILIZER PL STL BM 1/2" GAP L5X5X3/8 x 0'-8" BRG ANGLE W/ 3/8" STIFF PL AT CENTER OF ANGLE 5/16 1/4 1/4 3 S802 MTL ROOF DECK
