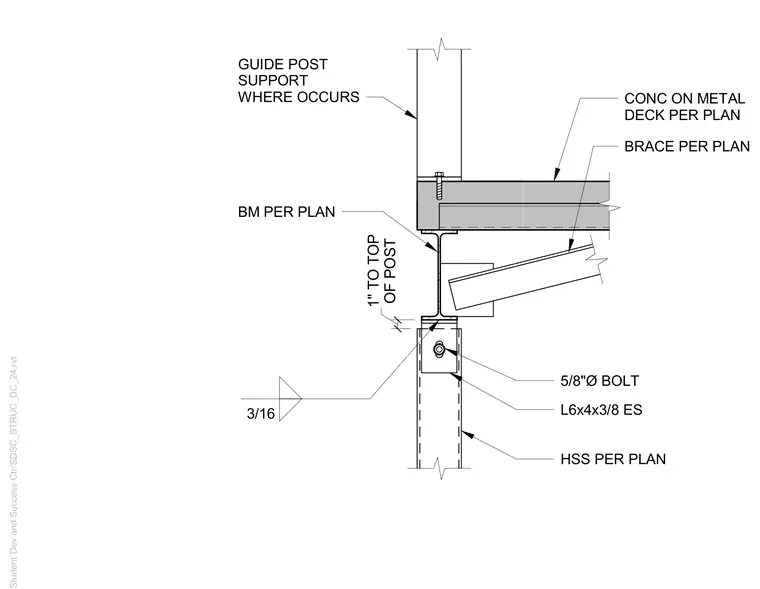

A guide post support bears on a concrete-filled metal deck assembly sized per plan, supported by a structural steel beam below. A structural brace sized per plan connects to the hollow structural section column using an L6x4x3/8 angle on each side, secured with a 5/8-inch-diameter bolt and a 3/16-inch fillet weld. The hollow structural section column is sized per plan and positioned one inch below the top of the post.
GUIDE POST SUPPORT WHERE OCCURS OF POST 1" TO TOP CONC ON METAL DECK PER PLAN BRACE PER PLAN L6x4x3/8 ES 5/8"Ø BOLT HSS PER PLAN 3/16 BM PER PLAN
