S-42Q3T — Stair Drag Continuity and Steel Beam Connection

Structural · S-42Q3T

Stair Drag Continuity and Steel Beam Connection

Materials

Concrete Steel Timber / Wood Metal (misc.)

Elements

Beams Stairs Roofs Floors / Slabs Decks Connections / Plates

About this detail

A concrete slab on metal deck bears on a wide-flange steel beam, sized per plan. Three-quarter-inch diameter shear studs are welded through the metal deck at twelve inches on center to provide composite action. Three-eighths-inch thick stiffener plates are welded to the web and flanges of the steel beam.

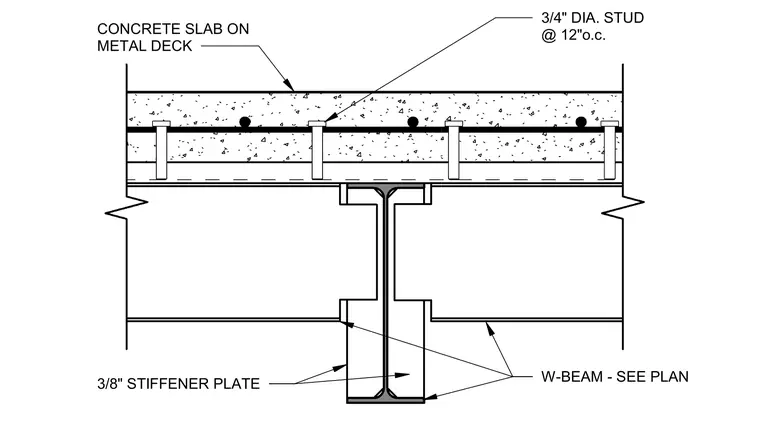

CONCRETE SLAB ON METAL DECK 3/4" DIA. STUD @ 12"o.c. W-BEAM - SEE PLAN 3/8" STIFFENER PLATE

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
