Electrical · S-42J42

Distribution Equipment Ground Bus Bar

Materials

Concrete Steel Stainless Steel Metal (misc.)

Elements

Walls Connections / Plates

Connections

Bolted Connection

About this detail

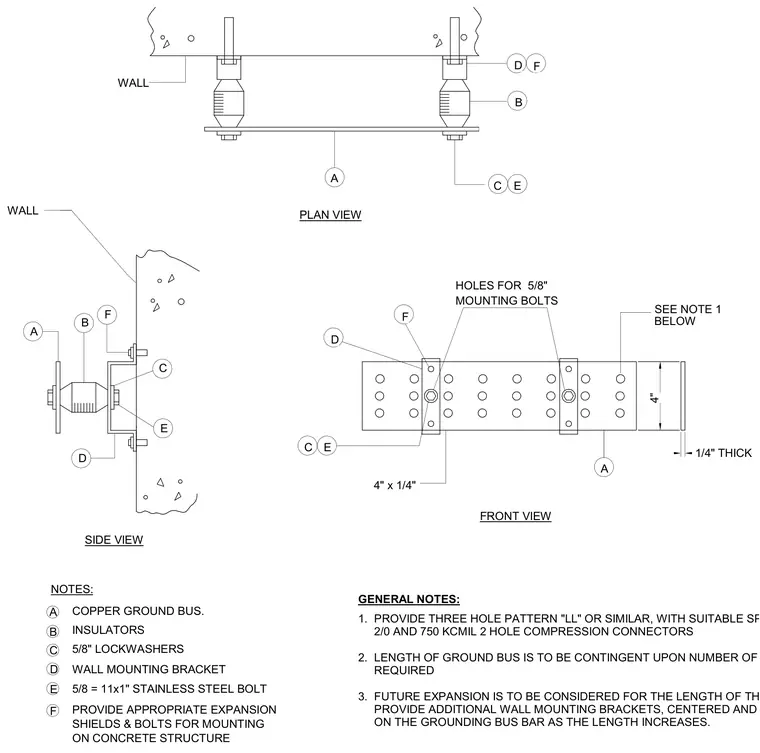

A copper ground bus bar is mounted to a concrete structure across plan, side, and front views. The four-inch wide by quarter-inch thick copper bar connects via five-eighths inch lockwashers, five-eighths by one-inch stainless steel bolts, and insulators to wall mounting brackets. Expansion shields and bolts secure the brackets to the concrete wall. The bus bar features pre-drilled holes sized for five-eighths inch mounting bolts and accommodates two-hole compression connectors based on future expansion requirements.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
