Typical Wide Flange Column Cap Plate Connection

Materials

Steel

Elements

Columns Walls Connections / Plates

Connections

HSS Connection Welded Connection

About this detail

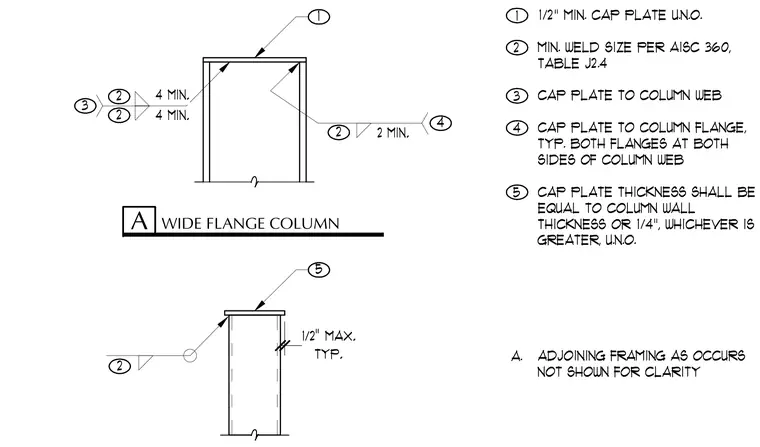

A wide flange column supports a steel cap plate welded to the column web and flanges. Minimum weld sizes conform to AISC 360 Table J2.4, with specific weld configurations applied to both flanges at both sides of the column web. The cap plate thickness is specified as equal to the column wall thickness or one-quarter inch, whichever is greater, unless noted otherwise. Adjoining framing is omitted for clarity.
