A wide flange beam connects to a gravity connection on studs and beams, supplemented by an angle brace where required by beam depth. A drift track connection allows for vertical building deflection and seismic drifts as noted on the structural general notes, positioned approximately six inches above the ceiling line. A horizontal drift joint in the skin occurs at the window head for additional movement allowance.

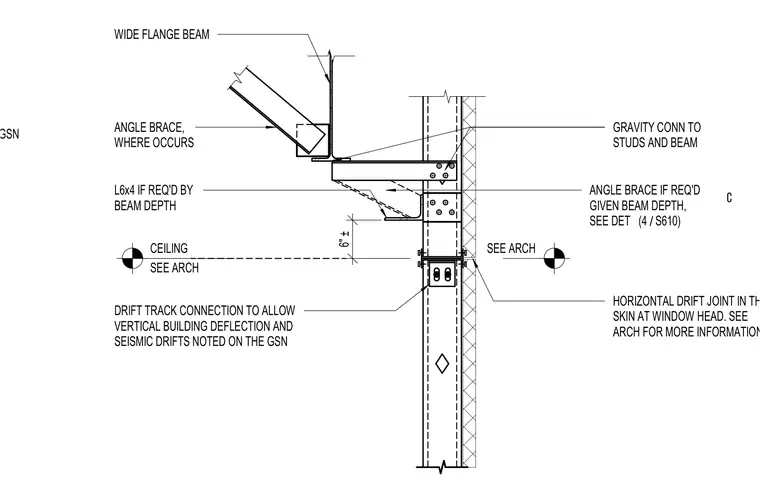

AND HORIZONTAL STORY DRIFTS INDICATED IN GSN ANGLE BRACE, WHERE OCCURS WIDE FLANGE BEAM 6" ± CEILING SEE ARCH SEE ARCH GRAVITY CONN TO STUDS AND BEAM ANGLE BRACE IF REQ'D GIVEN BEAM DEPTH, SEE DET L6x4 IF REQ'D BY BEAM DEPTH DRIFT TRACK CONNECTION TO ALLOW VERTICAL BUILDING DEFLECTION AND SEISMIC DRIFTS NOTED ON THE GSN HORIZONTAL DRIFT JOINT IN THE SKIN AT WINDOW HEAD. SEE ARCH FOR MORE INFORMATION / (4 S610) C
