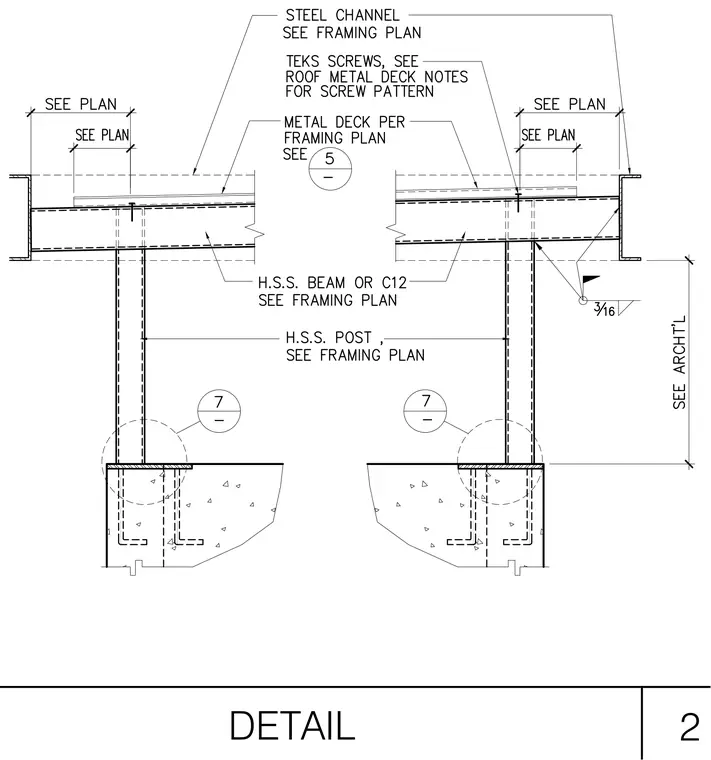

Hollow structural section posts support a hollow structural section beam or C12 channel per the framing plan. The top beam carries a metal deck fastened with Teks screws according to the roof metal deck notes, bounded by a steel channel. The base of each hollow structural section post anchors to a concrete foundation detailed in subsequent references.
