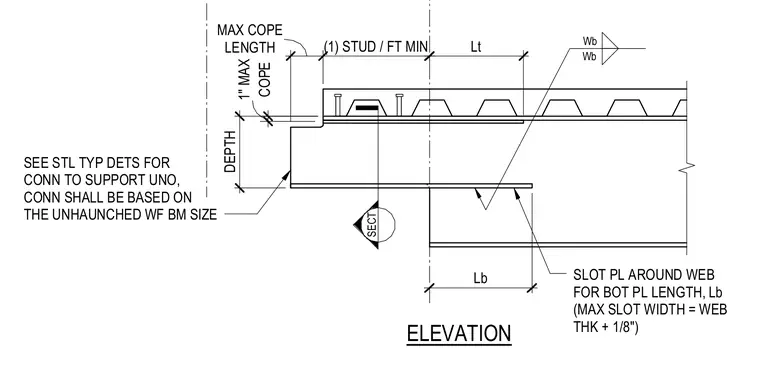

A haunched wide flange beam is detailed with a top cope and a slotted bottom plate. A slotted plate is provided around the web for the bottom plate length, where the maximum slot width equals the web thickness plus one-eighth inch. The top flange features a maximum one-inch cope with a specified maximum cope length and a minimum of one stud per foot. Connections to the support follow standard typical structural details unless noted otherwise, based on the unhaunched wide flange beam size.
SECT 6" 1 9 1 /2 " SLOT PL AROUND WEB FOR BOT PL LENGTH, Lb (MAX SLOT WIDTH = WEB THK + 1/8") Wb Wb ELEVATION 1 7 1 /4 " 1 8 7 /8 " SEE STL TYP DETS FOR CONN TO SUPPORT UNO, CONN SHALL BE BASED ON THE UNHAUNCHED WF BM SIZE COPE 1" MAX 1 3 1 /4 " MAX COPE LENGTH (1) STUD / FT MIN Lt Lb DEPTH
