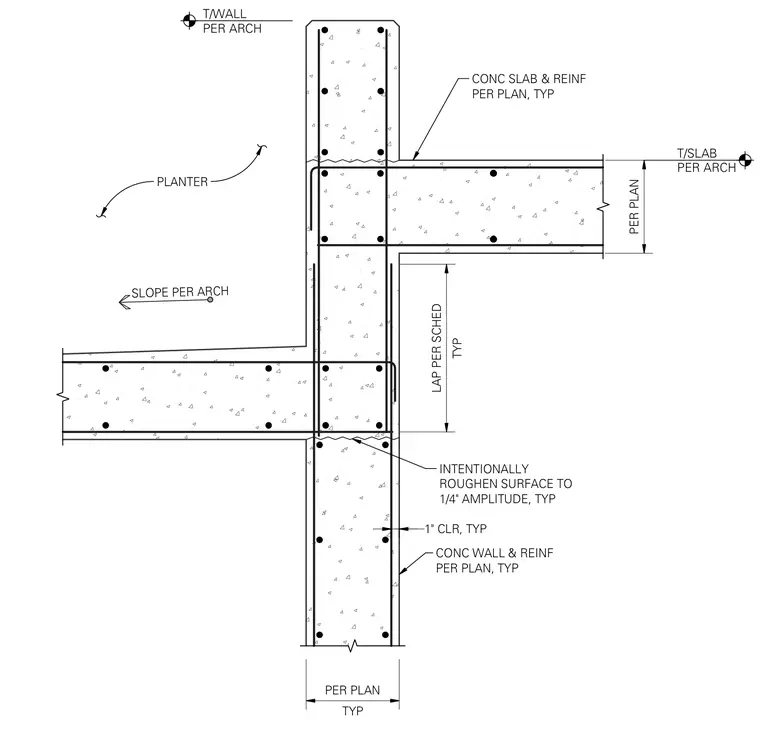

A vertical concrete wall with reinforcement per plan supports a concrete slab and a concrete planter slab at different elevations. The construction joint features an intentionally roughened surface to a one-quarter-inch amplitude typical. Reinforcing bars extend through the joint with typical laps per schedule. The wall has a typical one-inch clearance, and the planter slab slopes per architectural drawings.
TYP PER PLAN 1" CLR, TYP CONC WALL & REINF PER PLAN, TYP INTENTIONALLY ROUGHEN SURFACE TO 1/4" AMPLITUDE, TYP CONC SLAB & REINF PER PLAN, TYP PER PLAN T/SLAB PER ARCH T/WALL PER ARCH TYP LAP PER SCHED PLANTER SLOPE PER ARCH
