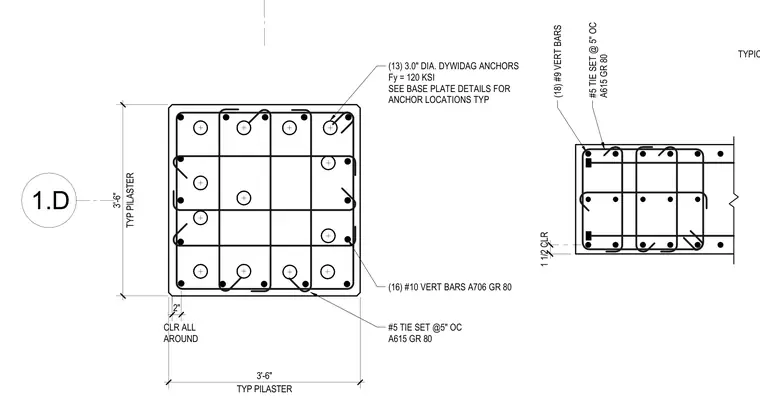

A three-foot, six-inch typical concrete pilaster is reinforced with sixteen number ten vertical bars conforming to ASTM A706 Grade 80 and eighteen number nine vertical bars with number five ties set at five inches on center conforming to ASTM A615 Grade 80. Thirteen three-inch diameter Dywidag anchors with a yield strength of 120 ksi are positioned within the pilaster core. A two-inch concrete clearance is maintained all around the perimeter for the main pilaster section, while a one-and-a-half-inch clearance is maintained for the adjacent structural member.
(13) 3.0" DIA. DYWIDAG ANCHORS Fy = 120 KSI SEE BASE PLATE DETAILS FOR ANCHOR LOCATIONS TYP (16) #10 VERT BARS A706 GR 80 TYP PILASTER 3'-6" 1.D TYPICAL BERT BARS (18) #9 VERT BARS #5 TIE SET @ 5" OC A615 GR 80 1 1/2 CLR TYP PILASTER 3'-6" #5 TIE SET @5" OC A615 GR 80 2" CLR ALL AROUND
