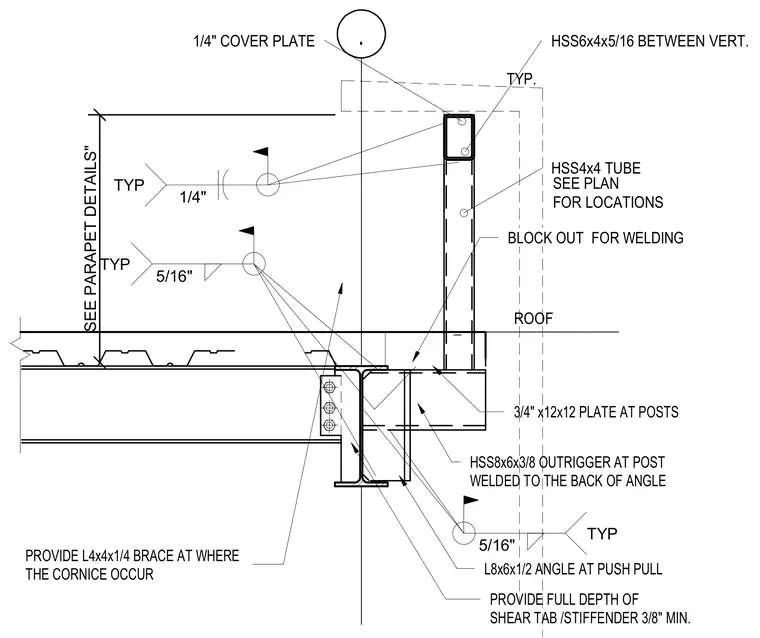

An HSS4x4 tube column extends upward from the roof level to form the structural parapet framework, tied back with an HSS8x6x3/8 outrigger welded to the back of an L8x6x1/2 angle at the push-pull connection. A three-quarter-inch by twelve-inch by twelve-inch base plate occurs at the posts, supported by a shear tab and stiffener plate with a minimum thickness of three-eighths of an inch. Additional stability is provided by an HSS6x4x5/16 horizontal member running between vertical posts, connected with quarter-inch fillet welds and a quarter-inch cover plate. An L4x4x1/4 brace is installed at locations where the cornice occurs.
SEE PARAPET DETAILS" . ROOF HSS4x4 TUBE SEE PLAN FOR LOCATIONS HSS6x4x5/16 BETWEEN VERT. TYP. 1/4" COVER PLATE 1/4" TYP BLOCK OUT FOR WELDING PROVIDE FULL DEPTH OF SHEAR TAB /STIFFENDER 3/8" MIN. 3/4" x12x12 PLATE AT POSTS 5/16" TYP 5/16" TYP HSS8x6x3/8 OUTRIGGER AT POST WELDED TO THE BACK OF ANGLE L8x6x1/2 ANGLE AT PUSH PULL PROVIDE L4x4x1/4 BRACE AT WHERE THE CORNICE OCCUR
