A joist girder frames into a steel column with a bolted connection, supported by a 3/4-inch by 6-inch plate sized to the girder width plus one inch and a 1/2-inch by 5-inch by 1-foot 3-inch stiffener plate. A 1/2-inch by 15-inch plate connects the diagonal framing member, where the width equals the column width plus one inch or girder width plus one inch, whichever is greater. A quarter-inch fillet weld secures the connection assembly. Girt framing above connects per detail 8 on sheet S703.

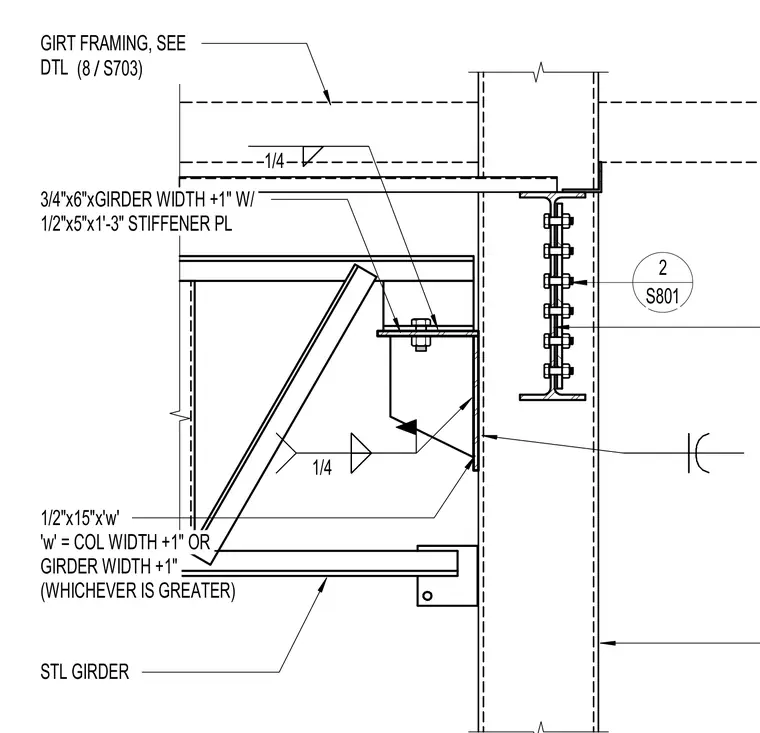

2 S801 STL GIRDER 1/4 3/4"x6"xGIRDER WIDTH +1" W/ 1/2"x5"x1'-3" STIFFENER PL 1/2"x15"x'w' 'w' = COL WIDTH +1" OR GIRDER WIDTH +1" (WHICHEVER IS GREATER) 1/4 GIRT FRAMING, SEE DTL / (8 S703)
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
