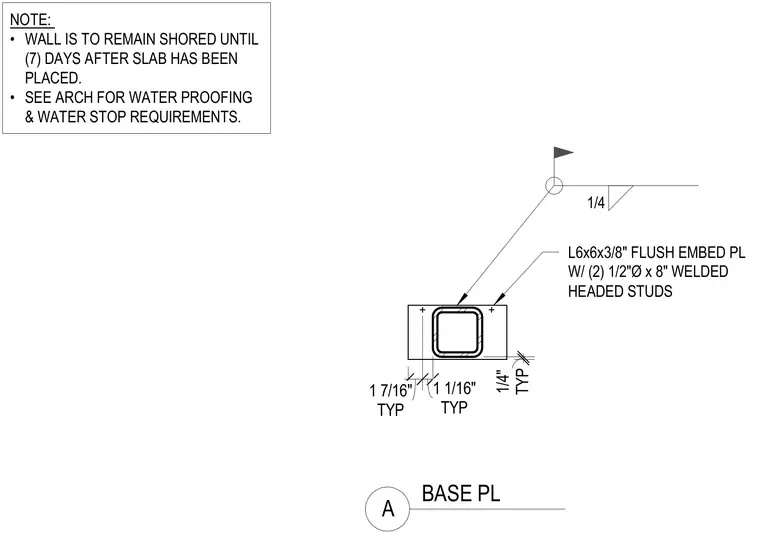

An L6x6x3/8 flush embed plate is anchored with two 1/2-inch diameter by 8-inch long welded headed studs. Fillet welds of 1/4-inch size connect the assembly with typical dimensions of 1 7/16 inches and 1 1/16 inches. The wall must remain shored until 7 days after the slab has been placed, and waterproofing and water stop requirements must be coordinated with architectural drawings.
NOTE: • WALL IS TO REMAIN SHORED UNTIL (7) DAYS AFTER SLAB HAS BEEN PLACED. • SEE ARCH FOR WATER PROOFING & WATER STOP REQUIREMENTS. TYP 1 7/16" TYP 1 1/16" L6x6x3/8" FLUSH EMBED PL W/ (2) 1/2"Ø x 8" WELDED HEADED STUDS 1/4 TYP 1/4" A BASE PL
