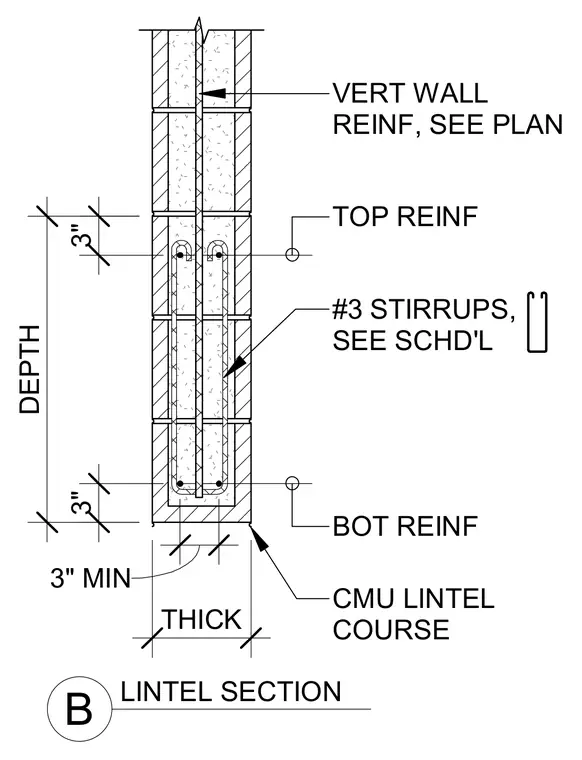

This concrete masonry unit lintel section details the reinforcement and dimensions for a structural masonry beam course. The assembly features top and bottom longitudinal reinforcing bars enclosed by number three stirrups sized per schedule. Vertical wall reinforcement extends continuously through the grouted core of the masonry units. The lintel course requires a minimum three-inch bearing length on each end and a specified thickness and depth.
#3 STIRRUPS, SEE SCHD'L B LINTEL SECTION THICK DEPTH 3" 3" VERT WALL REINF, SEE PLAN TOP REINF BOT REINF CMU LINTEL COURSE 3" MIN
