Structural · S-3YS58

Typical Minimum Concrete Wall Footing

Materials

Concrete Steel Glass / Glazing

Elements

Columns Walls Floors / Slabs Foundations / Footings Expansion / Control Joints Reinforcing

Connections

Rebar Splice / Development

About this detail

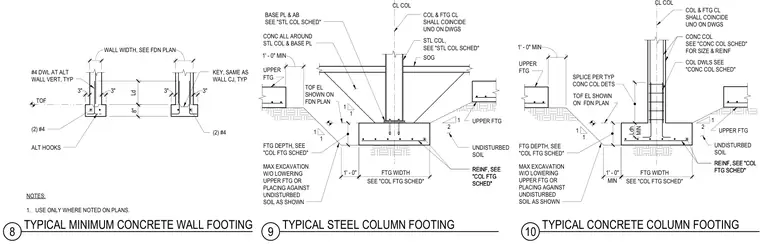

A minimum concrete wall footing bears on undisturbed soil. A continuous concrete footing is reinforced with two number four longitudinal bars and alternate hooks as specified. Vertical wall dowels, also number four bars, tie into the footing and extend up into the foundation wall with specified lap lengths and three-inch clear cover. A construction keyway matches the wall joint configuration. Excavation limits and top of footing elevations are coordinated per the foundation plan.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
