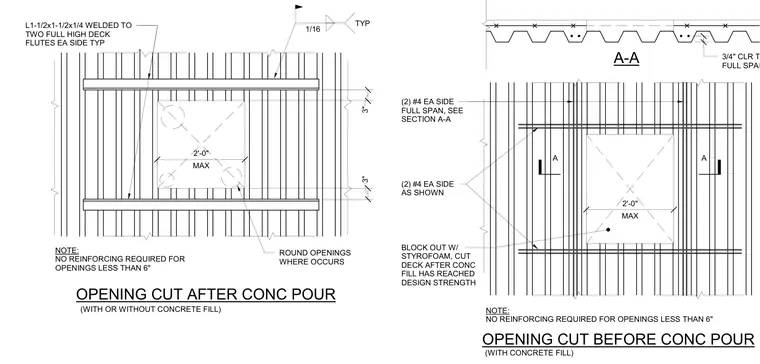

Framing and reinforcing for core openings in metal deck slabs distinguishes between cuts made before and after concrete placement. Openings up to two feet maximum are framed with angles welded to full-height deck flutes on each side. Two number four bars are placed on each side full span for structural continuity around the cutout. Styrofoam blocks out the opening when pouring concrete ahead of cutting. Openings under six inches require no added reinforcing.
A A OPENING CUT BEFORE CONC POUR OPENING CUT AFTER CONC POUR A-A (WITH OR WITHOUT CONCRETE FILL) BLOCK OUT W/ STYROFOAM, CUT DECK AFTER CONC FILL HAS REACHED DESIGN STRENGTH ROUND OPENINGS WHERE OCCURS (2) #4 EA SIDE AS SHOWN (2) #4 EA SIDE FULL SPAN, SEE SECTION A-A L1-1/2x1-1/2x1/4 WELDED TO TWO FULL HIGH DECK FLUTES EA SIDE TYP NOTE: NO REINFORCING REQUIRED FOR OPENINGS LESS THAN 6" 3/4" CLR TO (2)#4 FULL SPAN BARS TYP 1/16 TYP MAX 2'-0" NOTE: NO REINFORCING REQUIRED FOR OPENINGS LESS THAN 6" MAX 2'-0" 3" 3" . (WITH CONCRETE FILL)
