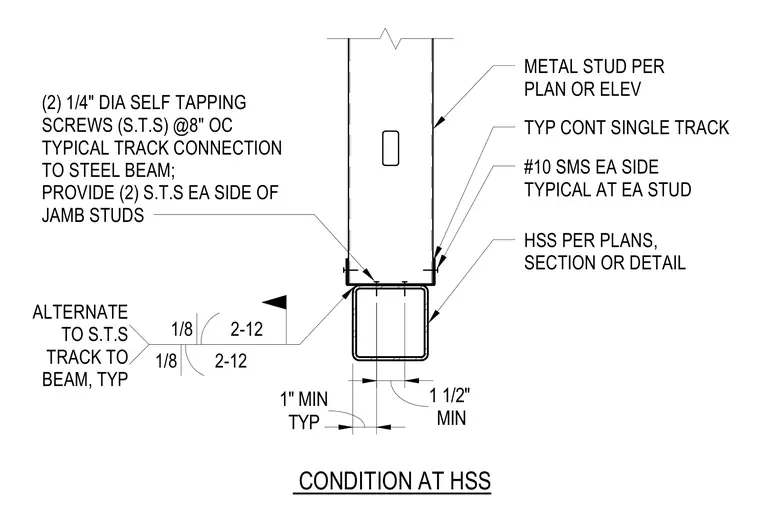

A continuous single track metal stud bears on a hollow structural section steel beam sized per plans, sections, or details. Two one-quarter-inch diameter self-tapping screws at eight inches on center secure the track connection to the steel beam, with two self-tapping screws provided on each side of the jamb studs. Number ten sheet metal screws are fastened on each side at every stud condition. An alternate track-to-beam connection specifies fillet welds of one-eighth inch sized per design.
#10 SMS EA SIDE TYPICAL AT EA STUD CONDITION AT HSS HSS PER PLANS, SECTION OR DETAIL TYP CONT SINGLE TRACK METAL STUD PER PLAN OR ELEV (2) 1/4" DIA SELF TAPPING SCREWS (S.T.S) @8" OC TYPICAL TRACK CONNECTION TO STEEL BEAM; PROVIDE (2) S.T.S EA SIDE OF JAMB STUDS TYP 1" MIN MIN 1 1/2" 1/8 2-12 ALTERNATE TO S.T.S TRACK TO BEAM, TYP 1/8 2-12
