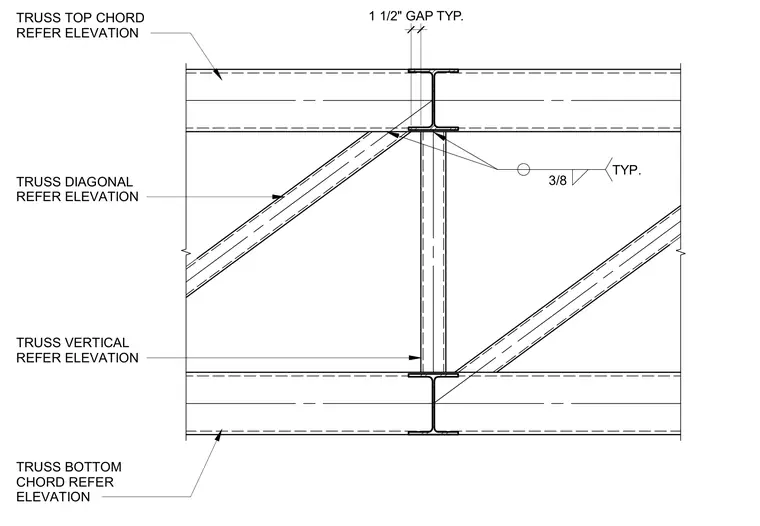

The assembly details a structural steel truss web-to-chord intersection maintaining a one-and-a-half-inch typical gap between components. The top and bottom chords and truss verticals are referenced to elevations, while three-eighths-inch diagonal members connect using fillet welds marked as typical. Structural members consist of wide flange or similar steel shapes configured for standard framing.
TRUSS TOP CHORD REFER ELEVATION TRUSS BOTTOM CHORD REFER ELEVATION TYP. 3/8 TRUSS DIAGONAL REFER ELEVATION TRUSS VERTICAL REFER ELEVATION 1 1/2" GAP TYP.
