Structural · S-3XJAS

CMU Lintel Bar Location Types

Materials

Elements

About this detail

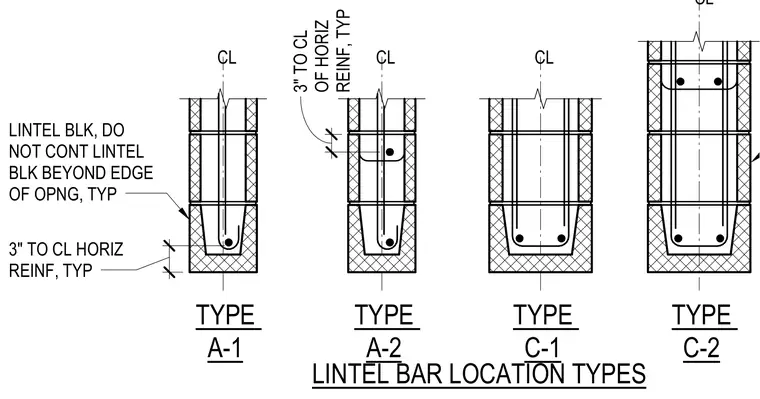

Concrete masonry unit lintel details illustrate four distinct lintel bar location types designated as A-1, A-2, C-1, and C-2 with varying horizontal reinforcement placements. Each detail shows lintel blocks centered on a vertical centerline, with specific dimensions calling out three inches to the centerline of horizontal reinforcement typically. Notes direct that lintel blocks shall not continue beyond the edge of the opening typically.
