Structural · S-3XHX2

Buckling Restrained Brace Gusset Plate Connection at Steel Column

Materials

Glass / Glazing

Elements

Roofs Bracing Connections / Plates

Connections

Braced Frame Connection Gusset Plate Bracing Connection Welded Connection Bolted Connection

About this detail

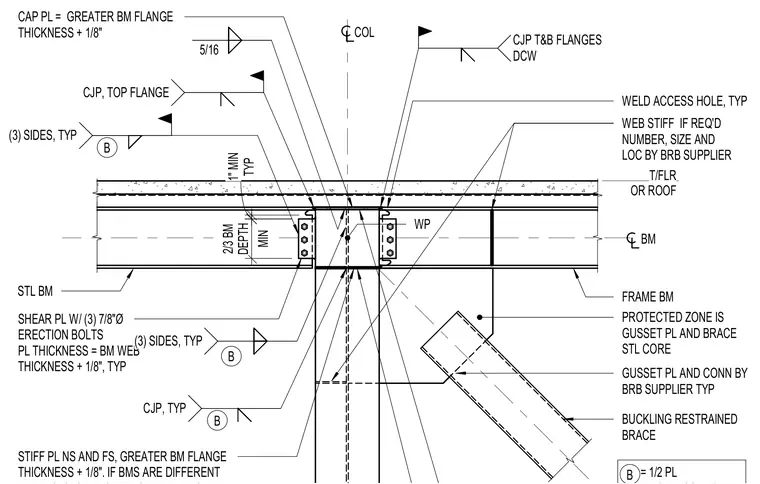

A buckling restrained brace connects to a steel column and frame beam assembly. A gusset plate and connection details are provided by the buckling restrained brace supplier, with web stiffeners added as required. The steel beam features a shear plate with three seven-eighth inch diameter erection bolts, where the plate thickness equals the beam web thickness plus one-eighth inch. Top and bottom flanges of the frame beam connect via complete joint penetration welds, with cap plates sized to the greater beam flange thickness plus one-eighth inch. Stiffener plates are installed near side and far side, and weld access holes are detailed typically at beam ends.
