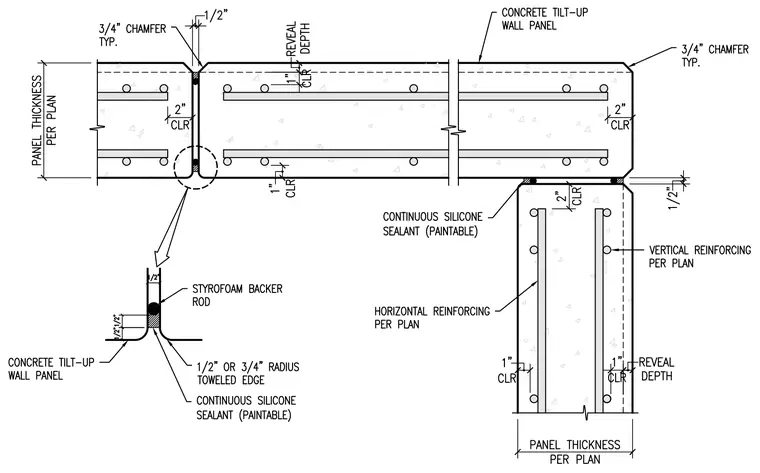

Adjacent concrete tilt-up wall panels meet at a 90-degree corner with continuous silicone sealant and styrofoam backer rods at the vertical joints. Panels feature vertical and horizontal reinforcing per plan with two-inch and one-inch concrete clear covers. Exterior corners include a three-quarter-inch typical chamfer, while panel joints incorporate a one-half-inch or three-quarter-inch radius toweled edge with a half-inch joint width and reveal depth.
