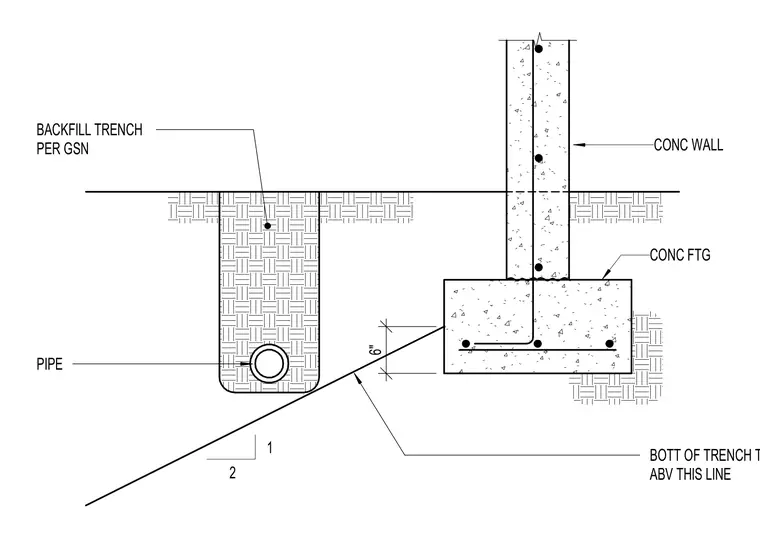

A concrete wall bears on a concrete footing founded below grade. Adjacent to the footing, a utility pipe is installed inside a trench with backfill placed per general structural notes. The bottom of the trench must remain above a 2 to 1 slope line projected from the footing base.
2 1 BOTT OF TRENCH TO BE ABV THIS LINE BACKFILL TRENCH PER GSN CONC FTG CONC WALL PIPE 6"
