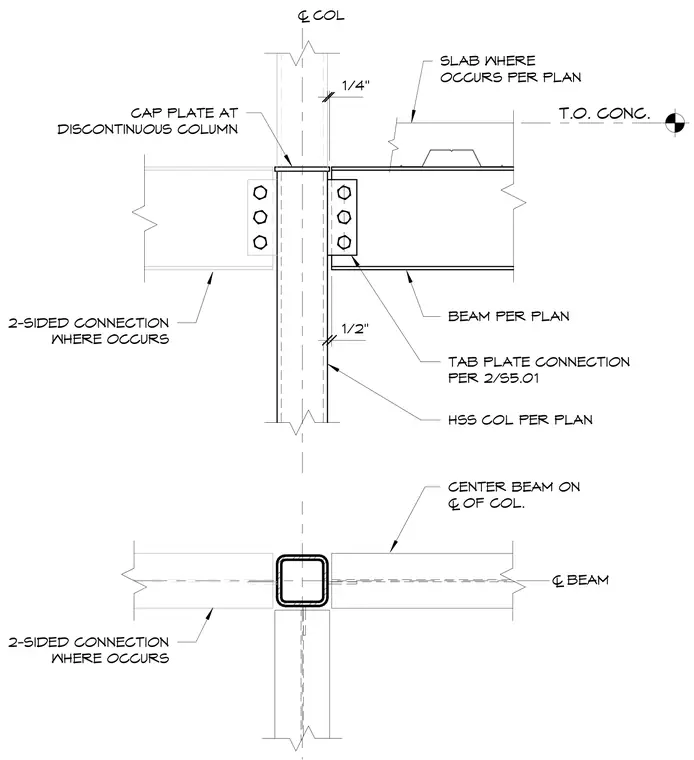

Steel beams frame into an HSS column using a bolted tab plate connection sized per plan. A cap plate tops the HSS column at a discontinuous upper level condition. A concrete slab on metal deck bears near the top of the beam where indicated. The beam is centered on the column centerline, with a two-sided connection provided where required.
1/4" 1/2" TAB PLATE CONNECTION PER 2/S5.01 BEAM PER PLAN SLAB WHERE OCCURS PER PLAN CAP PLATE AT DISCONTINUOUS COLUMN HSS COL PER PLAN CENTER BEAM ON ® OF COL. ® COL ® BEAM 2-SIDED CONNECTION WHERE OCCURS T.O. CONC. 2-SIDED CONNECTION WHERE OCCURS
