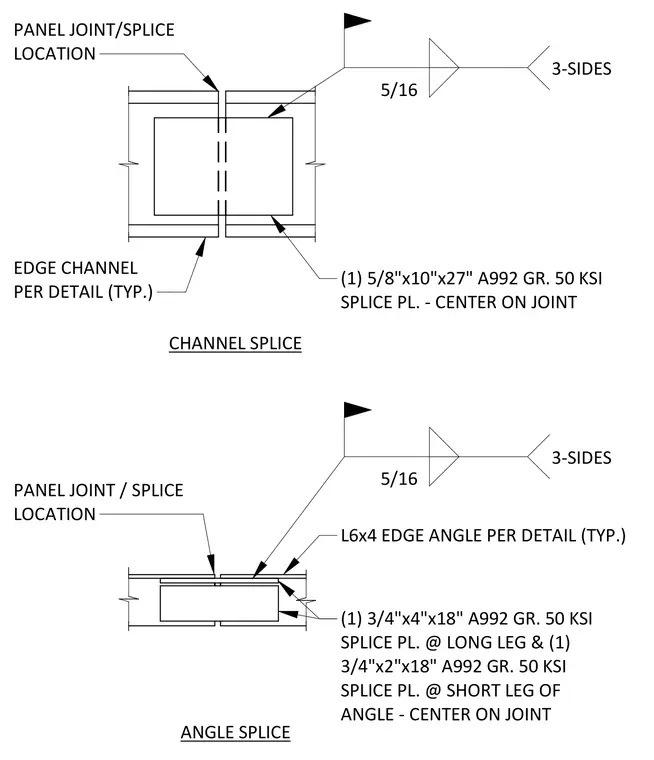

Two structural steel splice configurations connect perimeter edge shapes across panel joint locations. The channel splice uses one five-eighths-inch by ten-inch by twenty-seven-inch ASTM A992 Grade 50 splice plate centered on the joint and welded with a five-sixteenths-inch fillet weld on three sides. The angle splice uses an L6x4 edge angle tied with one three-quarter-inch by four-inch by eighteen-inch ASTM A992 Grade 50 splice plate at the long leg and one three-quarter-inch by two-inch by eighteen-inch splice plate at the short leg, each centered on the joint and secured with a five-sixteenths-inch fillet weld on three sides.
L6x4 EDGE ANGLE PER DETAIL (TYP.) (1) 3/4"x4"x18" A992 GR. 50 KSI SPLICE PL. @ LONG LEG & (1) 3/4"x2"x18" A992 GR. 50 KSI SPLICE PL. @ SHORT LEG OF ANGLE - CENTER ON JOINT ANGLE SPLICE 5/16 3-SIDES PANEL JOINT / SPLICE LOCATION EDGE CHANNEL PER DETAIL (TYP.) PANEL JOINT/SPLICE LOCATION (1) 5/8"x10"x27" A992 GR. 50 KSI SPLICE PL. - CENTER ON JOINT CHANNEL SPLICE 5/16 3-SIDES
