Structural · S-3WM88

Steel Joist Bearing At Steel Beam Girder

Materials

Steel Cold-formed Steel Metal (misc.)

Elements

Columns Beams Walls Roofs Decks Arches Bracing Expansion / Control Joints Connections / Plates

Connections

Bracing Connection Welded Connection Bolted Connection Deck Attachment Expansion / Slip Connection

About this detail

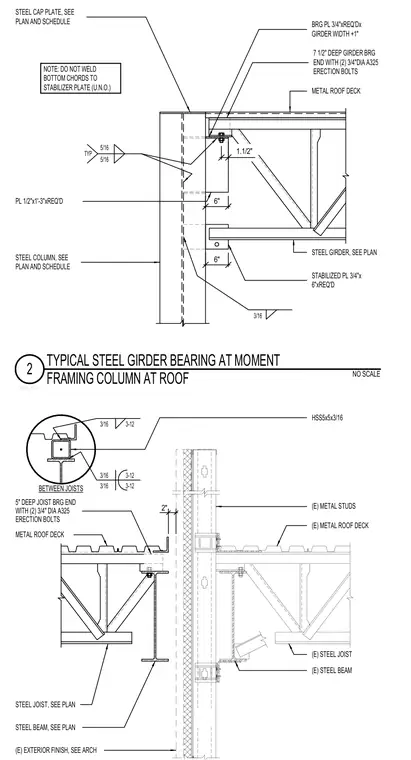

A steel girder and open-web steel joist bearing connection at a steel moment framing column supports a metal roof deck. The top girder features a seven and one-half inch deep bearing end connected with two three-quarter-inch diameter ASTM A325 erection bolts, resting on a three-quarter-inch bearing plate and a three-quarter-inch by six-inch stabilizer plate welded to a half-inch thick vertical plate on the column flange. A three-sixteenths-inch steel cap plate caps the column, and bottom chords are left unwelded to the stabilizer plate unless noted otherwise. Below, a five-inch deep joist bearing end connects with two three-quarter-inch diameter ASTM A325 erection bolts to a supporting steel beam and hollow structural section member, framed alongside existing metal studs and exterior finishes.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
