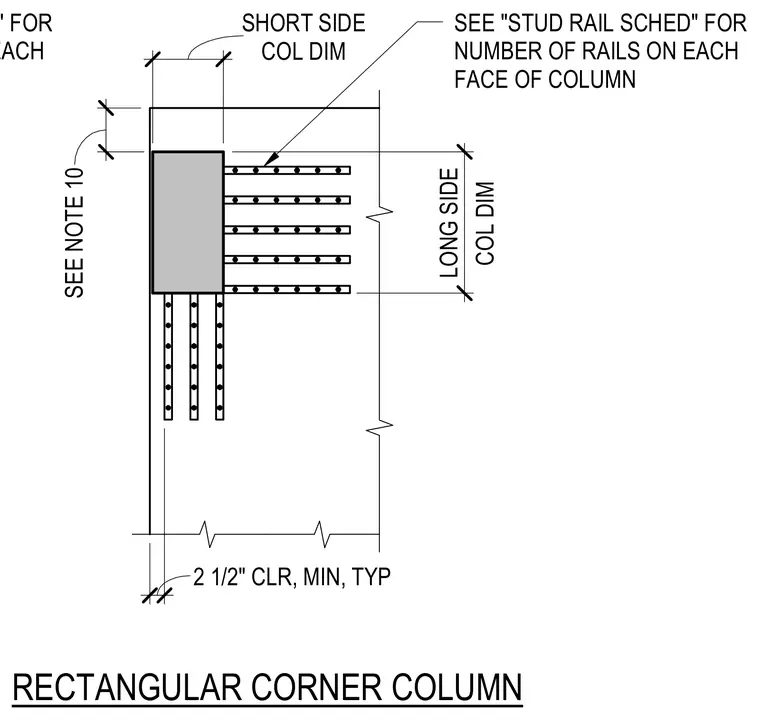

Stud rail shear reinforcement radiates from each face of a rectangular corner column. The layout provides a typical two and one-half inch minimum clearance to the column edge. Stud rails are spaced along both the short and long sides of the column per the structural schedule. Note references govern specific edge dimensions and placement requirements.
RECTANGULAR CORNER COLUMN 2 1/2" SEE "STUD RAIL SCHED" FOR NUMBER OF RAILS ON EACH 7 1/2" 12" 24" SEE "STUD RAIL SCHED" FOR NUMBER OF RAILS ON EACH FACE OF COLUMN LONG SIDE COL DIM SEE NOTE 10 SHORT SIDE COL DIM 2 1/2" CLR, MIN, TYP
