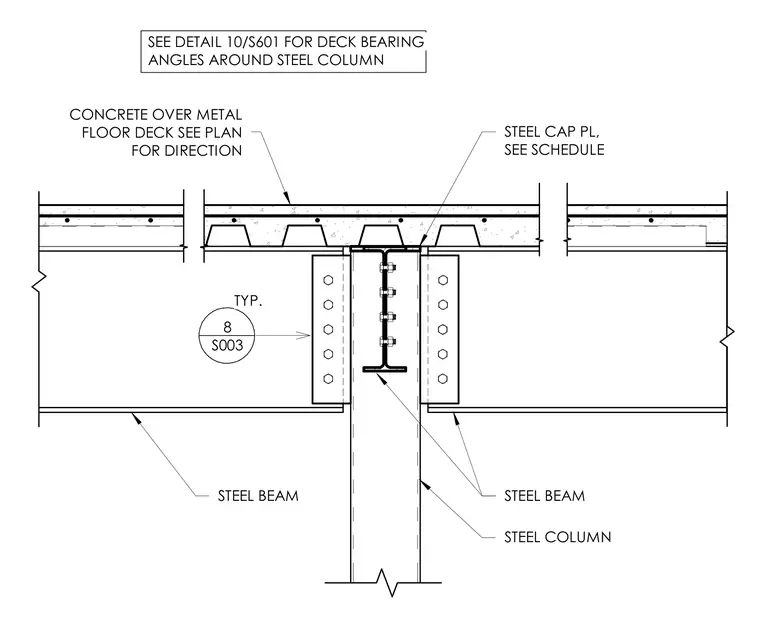

Steel beams frame into a steel column utilizing bolted connection plates with a steel cap plate sized per schedule at the top of the column. A concrete topping over metal floor deck spans across the top of the structural steel framing, with deck direction sized per plan and deck bearing angles provided around the column.
CONCRETE OVER METAL FLOOR DECK SEE PLAN FOR DIRECTION 8 S003 TYP. SEE DETAIL 10/S601 FOR DECK BEARING ANGLES AROUND STEEL COLUMN STEEL BEAM STEEL BEAM STEEL COLUMN STEEL CAP PL, SEE SCHEDULE
