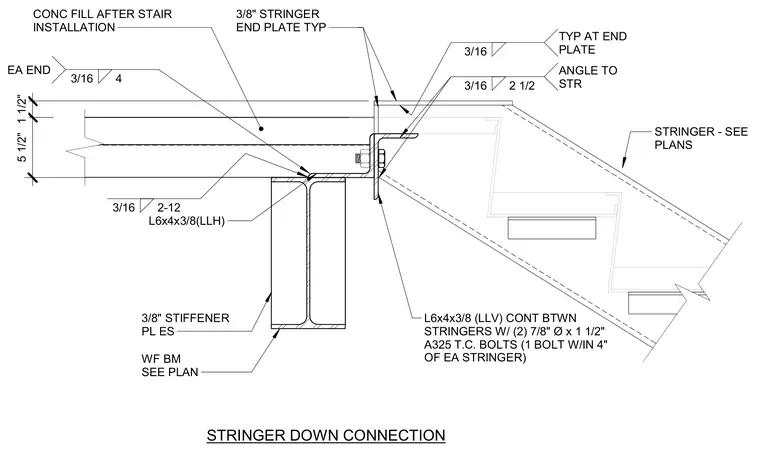

A stair stringer connects to a wide-flange beam support using a three-eighths-inch stringer end plate welded with a three-sixteenths-inch fillet weld. An L6x4x3/8 angle with long leg vertical is continuous between stringers and fastened with two seven-eighths-inch diameter by one-and-one-half-inch A325 twist-off control bolts, with one bolt located within four inches of each stringer. A three-eighths-inch stiffener plate is welded to the wide-flange beam support with three-sixteenths-inch fillet welds. Concrete fill is placed after the stair installation.
STRINGER - SEE PLANS 3/8" STRINGER END PLATE TYP CONC FILL AFTER STAIR INSTALLATION WF BM SEE PLAN STRINGER DOWN CONNECTION L6x4x3/8 (LLV) CONT BTWN STRINGERS W/ (2) 7/8" Ø x 1 1/2" A325 T.C. BOLTS (1 BOLT W/IN 4" OF EA STRINGER) 3/8" STIFFENER PL ES 1 1/2" 5 1/2" L6x4x3/8(LLH) EA END 4 3/16 2-12 3/16 TYP AT END PLATE 3/16 ANGLE TO STR 2 1/2 3/16
