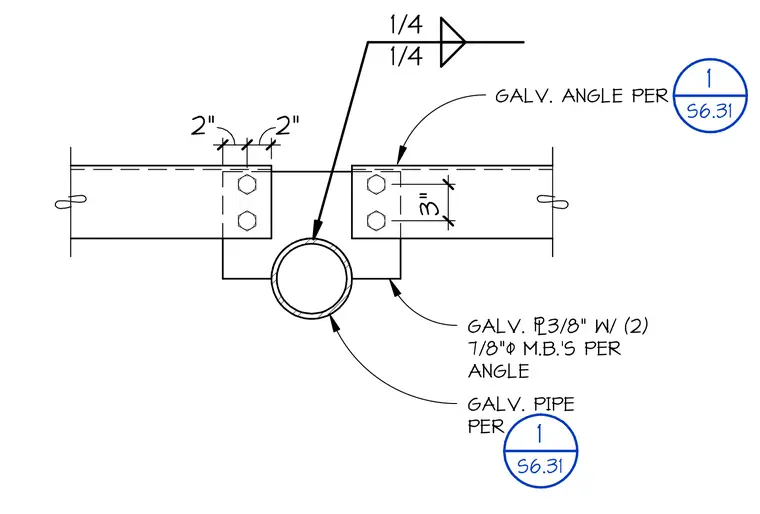

A galvanized pipe connects to a supporting structure using a galvanized angle per sheet S6.31. A three-eighths inch galvanized plate is fastened with two seven-eighths inch diameter machine bolts per angle. A one-quarter inch fillet weld secures the pipe assembly. Spacing dimensions include two inches and three inches as specified on the drawing.
2" 2" GALV. &3/8" W/ (2) 7/8", M.B.'S PER ANGLE GALV. PIPE PER 1 S6.31 1/4 1/4 GALV. ANGLE PER 1 S6.31 3"
