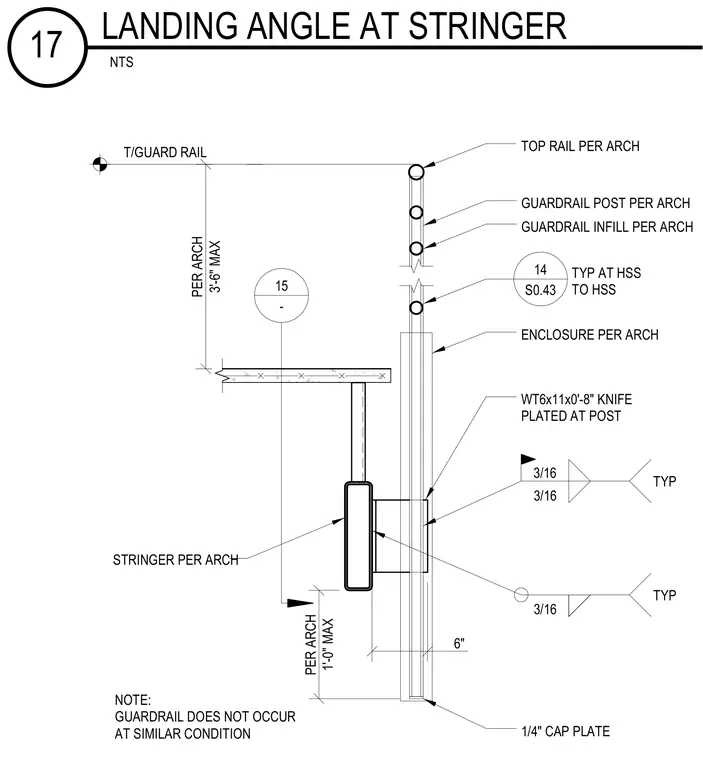

A stair landing angle connects to a structural steel stringer using a WT6x11 by 0-foot 8-inch knife plate welded with typical three-sixteenths inch fillet welds. A guardrail post with top rail, infill, and enclosure extends upward from the assembly. A one-quarter inch cap plate closes the bottom of the enclosure. Maximum dimensions and clearances are coordinated per architectural requirements.
TYP TYP 15 - 14 S0.43 PER ARCH 1'-0" MAX PER ARCH 3'-6" MAX 6" TOP RAIL PER ARCH GUARDRAIL POST PER ARCH GUARDRAIL INFILL PER ARCH ENCLOSURE PER ARCH STRINGER PER ARCH 3/16 1/4" CAP PLATE NOTE: GUARDRAIL DOES NOT OCCUR AT SIMILAR CONDITION WT6x11x0'-8" KNIFE PLATED AT POST TYP AT HSS TO HSS T/GUARD RAIL 3/16 3/16 NTS LANDING ANGLE AT STRINGER 17
