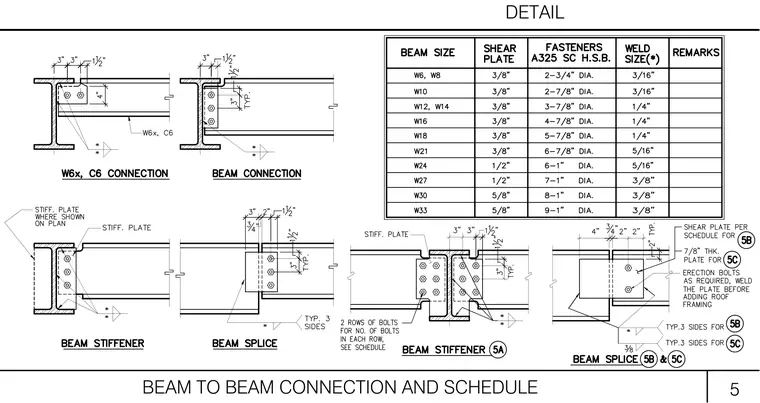

The structural detail sheet displays multiple steel beam-to-beam connection configurations alongside a sizing schedule. Shear plate thicknesses range from 3/8-inch for W6 to W18 sections up to 5/8-inch for W30 and W33 sections. Fasteners utilize ASTM A325 slip-critical high-strength bolts varying in diameter and quantity per the schedule. Fillet welds range from 3/16-inch to 3/8-inch sized according to the supporting beam size. Additional details show beam stiffeners and beam splices with specific bolt spacing and plate dimensions.
