Structural · S-3VY36

Edge of Deck with Pour Stop

Materials

Elements

Beams Roofs Decks Connections / Plates Reinforcing

About this detail

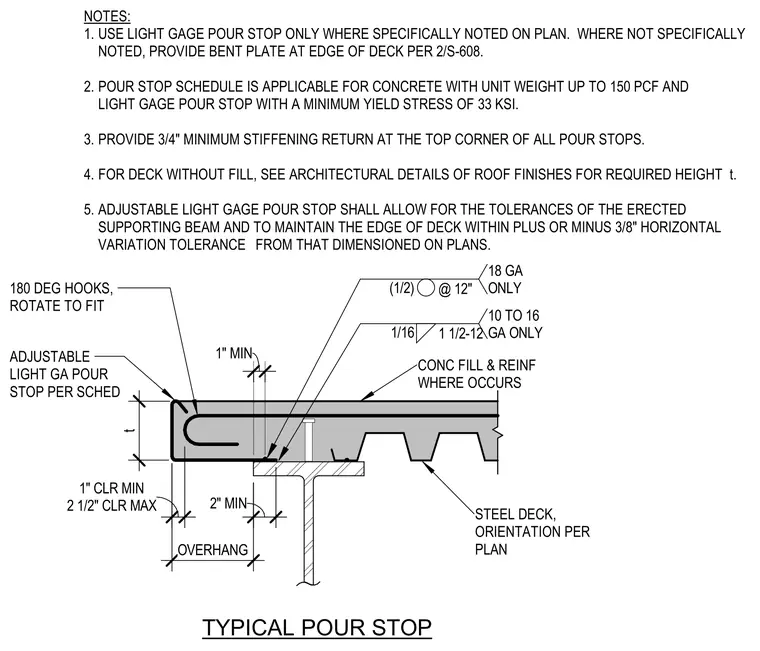

An adjustable light gauge pour stop is positioned at the edge of a concrete fill and reinforcing slab over a metal deck. The metal deck bears on a supporting structural steel beam with specified minimum overhangs and clearances. General notes dictate pour stop usage, concrete unit weight limits up to 150 pounds per cubic foot, minimum yield stress requirements, and stiffening return dimensions. Reinforcing bars feature 180-degree hooks rotated to fit within specified clear distances.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
