Structural · S-3VX3C

Concrete Tilt-Up Panel Opening Reinforcement Detail

Materials

Concrete Reinforced Concrete

Elements

Reinforcing Roof / Floor Openings

Connections

Rebar Splice / Development

About this detail

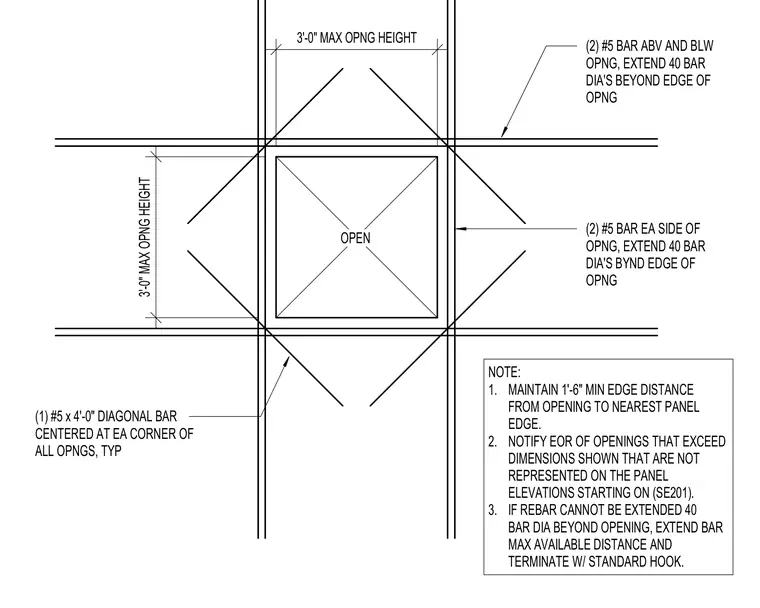

Concrete tilt-up wall panel openings require specific reinforcing bars placed around all perimeter edges for structural integrity. One number five by four-foot diagonal bar is centered at each corner of all typical openings. Two number five bars are placed above and below the opening, extending forty bar diameters beyond the opening edge. Two number five bars are also placed on each side of the opening, extending forty bar diameters beyond the edge. A minimum one-foot-six-inch edge distance must be maintained from the opening to the nearest panel edge. The engineer of record must be notified of any openings exceeding the shown dimensions that are not represented on the panel elevations. If rebar cannot be extended the full forty bar diameters beyond the opening, the bar must extend the maximum available distance and terminate with a standard hook.
