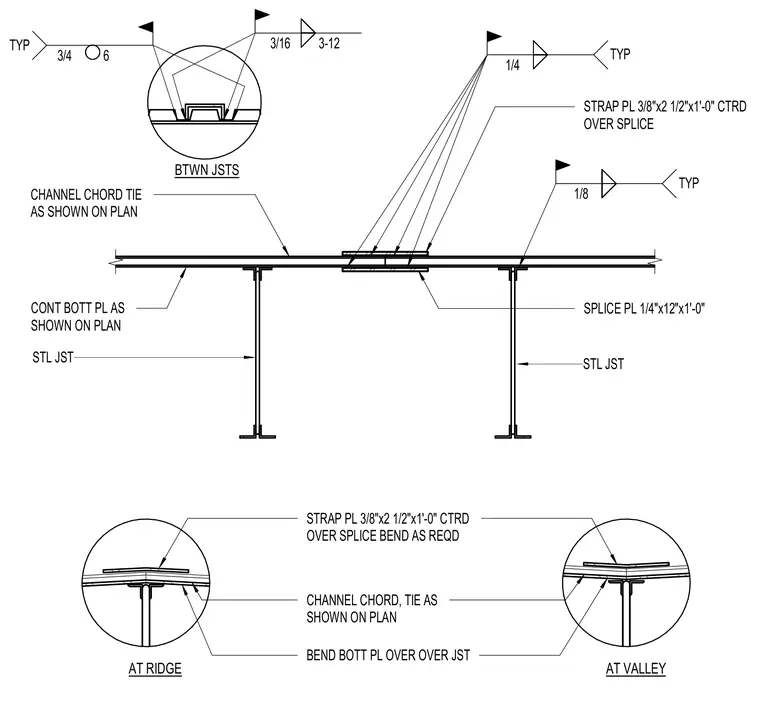

The assembly joins channel chord ties across steel joists using a 3/8-inch by 2 1/2-inch by 1-0-foot strap plate centered over the splice. A continuous bottom plate as shown on plan runs along the underside, supplemented by a 1/4-inch by 12-inch by 1-0-foot splice plate between joists. Field welding includes typical fillet welds designated by 1/4-inch, 1/8-inch, and 3/16-inch sizes. Additional inset details show the strap plate configuration bent as required at the ridge and valley, and detailed between joists.
CONT BOTT PL AS SHOWN ON PLAN CHANNEL CHORD TIE AS SHOWN ON PLAN STRAP PL 3/8"x2 1/2"x1'-0" CTRD OVER SPLICE BEND AS REQD CHANNEL CHORD, TIE AS SHOWN ON PLAN BEND BOTT PL OVER OVER JST AT RIDGE AT VALLEY SPLICE PL 1/4"x12"x1'-0" STRAP PL 3/8"x2 1/2"x1'-0" CTRD OVER SPLICE BTWN JSTS STL JST STL JST 1/4 TYP 1/8 TYP 3/16 3-12 3/4 6 TYP
