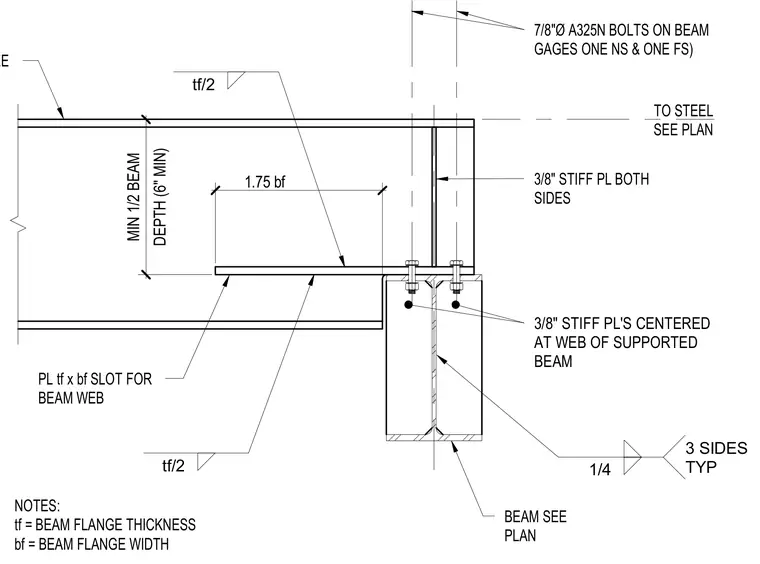

A supported steel beam frames into a supporting steel beam utilizing a seated connection detail. The supported beam features a slotted web to fit over a plate seat of specified dimensions. Three-eighths-inch stiffener plates are welded to both sides and centered at the web of the supported beam. Seven-eighths-inch diameter A325-N bolts secure the connection through the beam gauges on the near side and far side. Three-eighths-inch stiffener plates are also provided on both sides of the supporting beam web. Fillet welds of one-quarter-inch size are applied typically on three sides.
NOTES: tf = BEAM FLANGE THICKNESS bf = BEAM FLANGE WIDTH PL tf x bf SLOT FOR BEAM WEB BEAM SEE PLAN TO STEEL SEE PLAN BEAM SEE 3/8" STIFF PL'S CENTERED AT WEB OF SUPPORTED BEAM 3/8" STIFF PL BOTH SIDES 7/8"Ø A325N BOLTS ON BEAM GAGES ONE NS & ONE FS) 1.75 bf tf/2 DEPTH (6" MIN) MIN 1/2 BEAM 1/4 3 SIDES TYP tf/2
