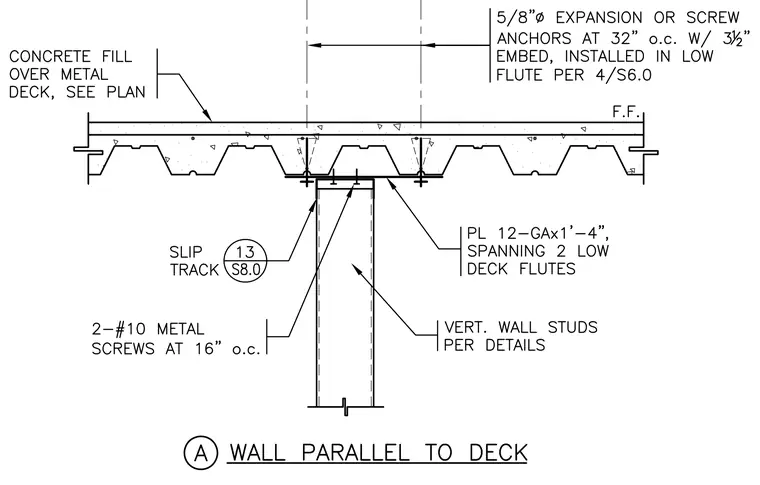

A vertical wall stud supports a slip track tied into a 12-gauge plate measuring one foot four inches long and spanning two low deck flutes. The assembly connects to the underside of the concrete fill over metal deck using five-eighths inch diameter expansion or screw anchors spaced at thirty-two inches on center with a three and one-half inch embedment, installed in the low flute per detail 4 on sheet S6.0. The vertical wall studs are spaced per details, and fastened with two number 10 metal screws at sixteen inches on center.
