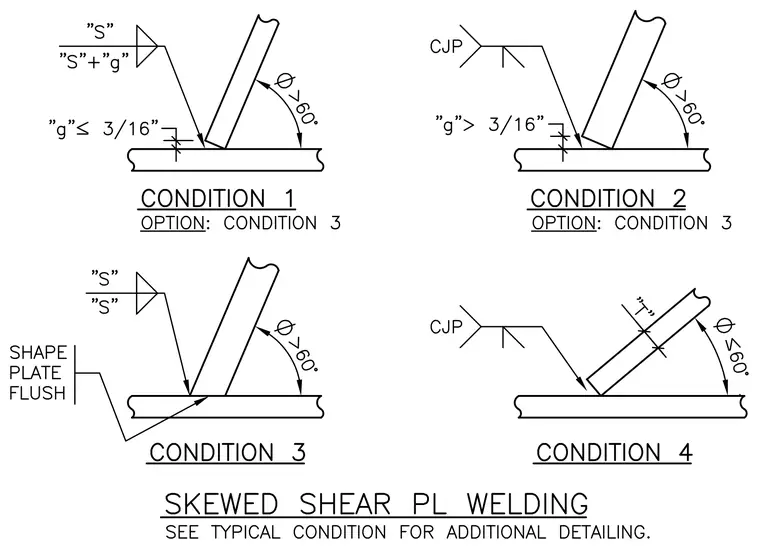

Condition 1 applies when the root opening is less than or equal to three-sixteenths of an inch and the skew angle is greater than sixty degrees, using a fillet weld sized to "S" plus "g" on one side and "S" on the other, with Condition 3 as an alternate option. Condition 2 applies when the root opening exceeds three-sixteenths of an inch with a skew angle greater than sixty degrees, utilizing a complete joint penetration weld with a supplemental fillet weld. Condition 3 applies when the shape plate is flush, using standard fillet welds of size "S" on both sides. Condition 4 applies when the skew angle is less than or equal to sixty degrees with a plate thickness "T", requiring a complete joint penetration weld.
