Structural · S-3V93C

Window and Metal Deck Connection at Steel Beam and Concrete Slab

Materials

Concrete Steel Timber / Wood Metal (misc.)

Elements

Beams Windows Floors / Slabs Decks Arches Connections / Plates

Connections

Welded Connection Deck Attachment

About this detail

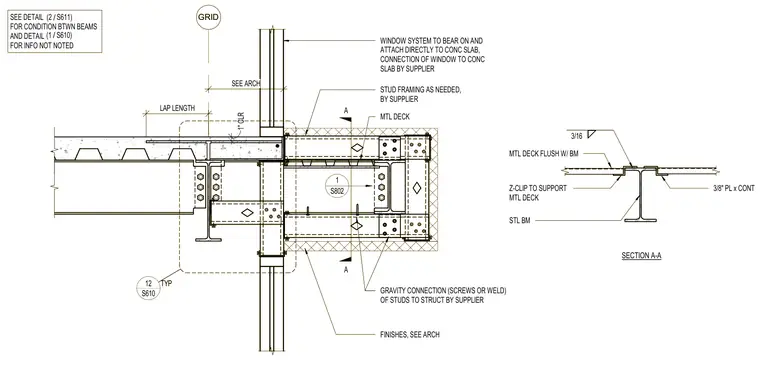

A window system bears directly on and attaches to a concrete slab, with stud framing supplied as needed. A metal deck is positioned flush with the steel beam and supported by Z-clips, featuring a continuous three-eighths-inch plate welded with a three-sixteenths-inch fillet weld. Gravity connections via screws or welds anchor the studs to the structural frame. Additional finish requirements are referenced per architectural drawings.
