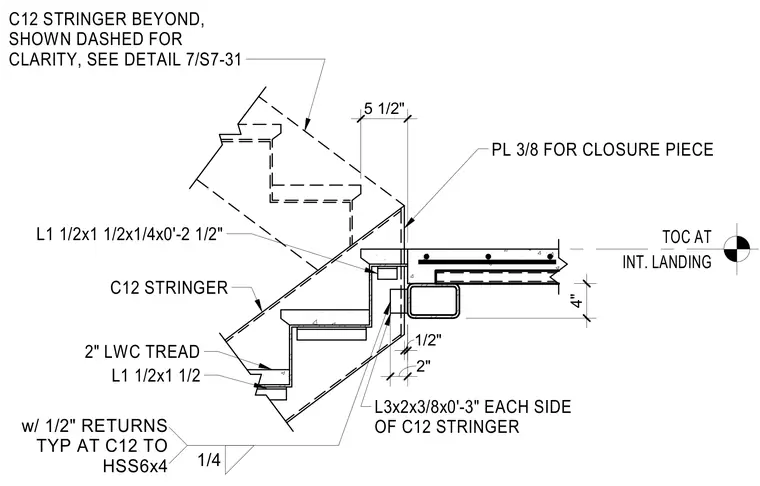

A C12 steel channel stringer frames into an HSS6x4 structural steel tube at the intermediate landing, supported by 3-inch long L3x2x3/8 angles on each side of the stringer. A 3/8-inch steel plate acts as a closure piece between the landing edge and the stair framing. The connection is welded with a 1/4-inch fillet weld featuring typical 1/2-inch returns where the C12 stringer meets the HSS6x4 tube. Lightweight concrete treads measuring 2 inches thick are supported by L1-1/2x1-1/2 angles welded to the stringer.
INT. LANDING TOC AT C12 STRINGER BEYOND, SHOWN DASHED FOR CLARITY, SEE DETAIL 7/S7-31 L3x2x3/8x0'-3" EACH SIDE OF C12 STRINGER PL 3/8 FOR CLOSURE PIECE 1/2" 2" 4" 5 1/2" 1/4 w/ 1/2" RETURNS TYP AT C12 TO HSS6x4 L1 1/2x1 1/2x1/4x0'-2 1/2" C12 STRINGER 2" LWC TREAD L1 1/2x1 1/2
