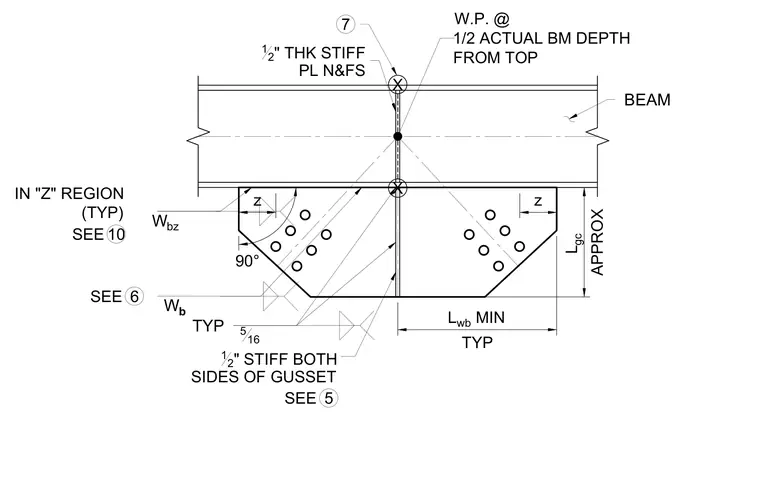

A structural gusset plate connects to the underside of a wide flange beam at the apex of a chevron brace. The work point is located at one-half the actual beam depth from the top flange. One-half-inch thick stiffener plates are provided on near and far sides of the beam web, with additional one-half-inch stiffeners on both sides of the gusset plate. Five-sixteenths-inch fillet welds secure the stiffeners and gusset connections. Weld configurations and "Z" regions follow specific detail references.
L wb MIN TYP L gc APPROX 516 12 " THK STIFF PL N&FS TYP BEAM 5 SEE W.P. @ 1/2 ACTUAL BM DEPTH FROM TOP 12 " STIFF BOTH SIDES OF GUSSET X 7 X W bz 90° z z W b 6 SEE IN "Z" REGION (TYP) 10 SEE
